SolidCable 100X
Carrier Class Gigabit Ethernet Cable

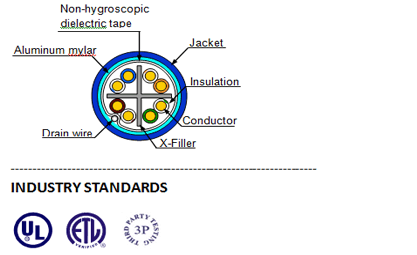

PRODUCT OVERVIEW

= CONDUCTOR: 24 AWG BARE SOLID/STRAND COPPER
= Integrated ESD drain wire to prevent ESD attack and demage

= INSULATION: HDPE, FRPE, FEP

= RIPCORD: UNDER JACKET
= JACKET: FRPVC

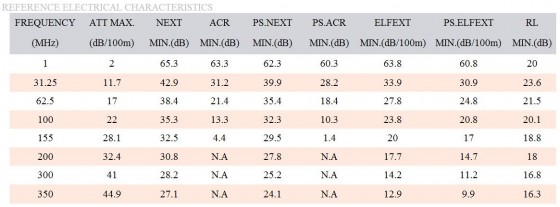

PRODUCT CHARACTERISTICS

= Features: Impedence100 +/- 15 ohms
= Mutual Capacitance, MAX. nf/1000ft 17.1
= DC Resistance, MAX. Ohms/1000ft28.6
= DC Resistance, unbalance of a pair:5% MAX
= Capacitance unbalance(pair to ground):330pF/100m MAX.
= Propagation delay skew:40nS/100M

SolidCable 1000X

Carrier Class Gigabit Ethernet Cable

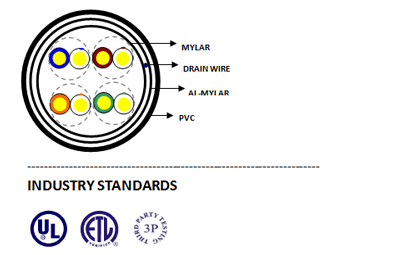

PRODUCT OVERVIEW

= CONDUCTOR: 23 AWG BARE SOLID COPPER
= ESD PROTECTION: 23 AWG copper
= Integrated ESD drain wire to prevent ESD attack and demage
= INSULATION: HDPE, FRPE, FEP
= SHIELD: Mylar-Aliminum/Mylar tape
= RIPCORD: UNDER JACKET
= JACKET: FRPVC

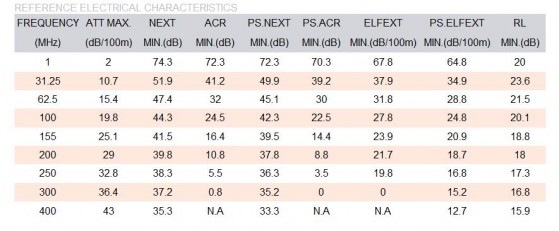

PRODUCT CHARACTERISTICS

= Features: Impedence 100 +/- 15 ohms

= Mutual Capacitance, MAX. nf/1000ft 17.1

= DC Resistance, MAX. Ohms/1000ft 28.6

= DC Resistance, unbalance of a pair: 5% MAX

= Capacitance unbalance(pair to ground): 330pF/100m MAX.

= Propagation delay skew: 30nS/100M
